Description
Technical Parameters

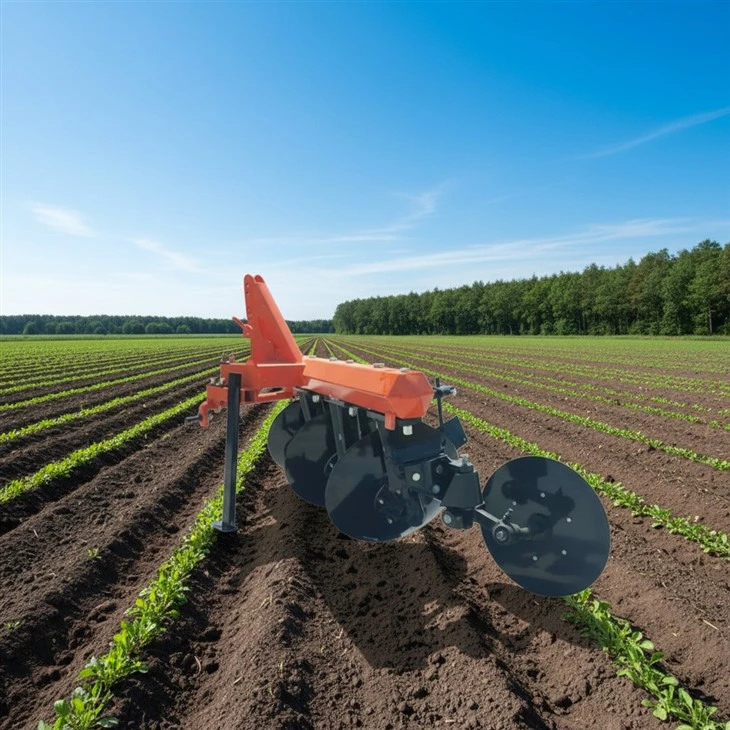

1LY Disc plough is specially designed, manufactured and borrowed according the features of foreign disc plough, it is Fully-suspended with four wheel tractor. And the discs are rotary motion when tuning the soil. This mounted disk plow is especially suitable for cultivation in the land with weeds, stems and frictional soil with bricks.
|
Model |
1LY-2 |
1LY-3 |
1LY-4 |
1LY-5 |
|
Width of cut (mm) |
600 |
900 |
1200 |
1500 |
|
Depth of cut (mm) |
250~300 |
|||
|
Dia of disc (mm) |
660 |
|||
|
Q'ty of disc |
2 |
3 |
4 |
5 |
|
Weight (kg) |
350 |
400 |
470 |
560 |
|
Tractor power (hp) |
40 |
60 |
80 |
120 |
