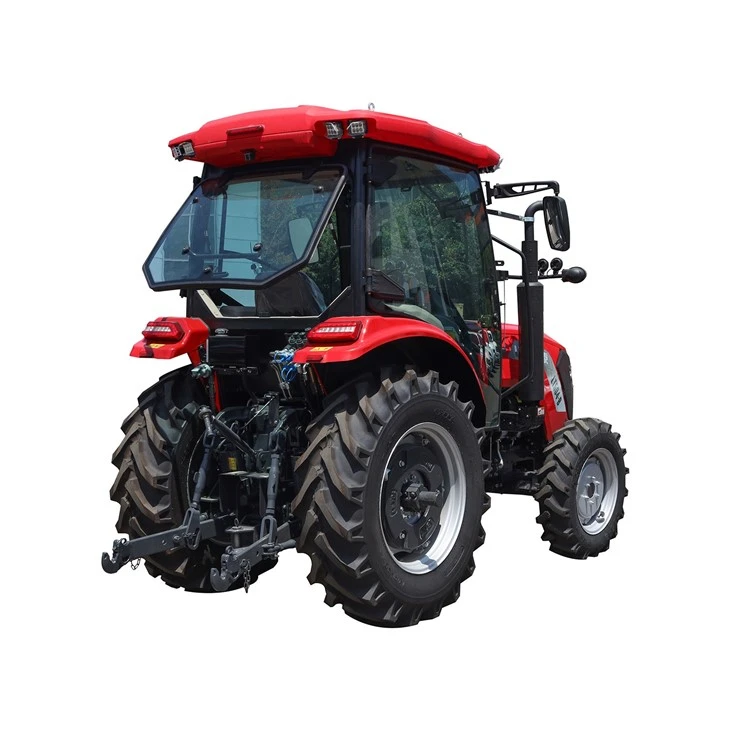

45HP 50HP Small Diesel Tractor Agricola Mini Tractor Cultivator 4x4 Mini Farm Tractor

45HP 50HP Small Diesel Tractor Agricola Mini Tractor Cultivator 4x4 Mini Farm Tractor

Adopt Xinchai engine, with large power reserve, low fuel consumption, more energy saving and environmental protection. The whole system is equipped with TB chassis, 12+12 shuttle shift, the operation is more convenient and flexible. Bearings using imported replacement bearings, gear speed ratio scientific collocation, longer service life. Equipped with double-acting clutch, the power output torque is large, and it is more suitable for heavy duty operation. Self-developed bionic streamline hood, built-in hood lock, self-developed lens headlight, higher brightness. The whole tractor covering parts and welded sheet metal parts adopt electrophoretic spraying process, which has better rust prevention effect and is not easy to rust. Equipped with strong lift strong drop device , two sets of hydraulic output (optional three sets), to ensure that meet the needs of various working conditions, Optional air-conditioned cab or sunshade to ensure a more comfortable working environment in winter and summer.
Send Inquiry
Description
Technical Parameters

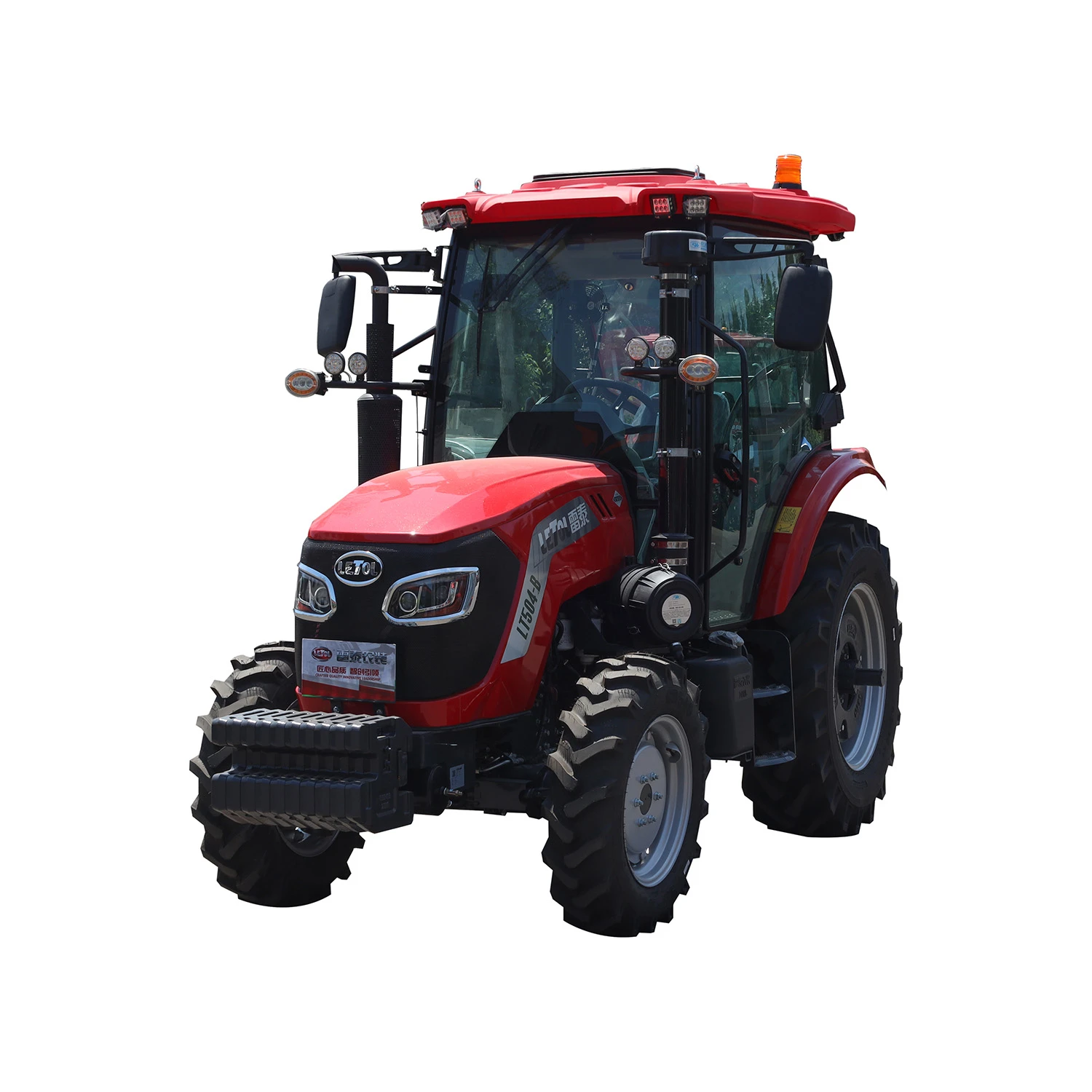

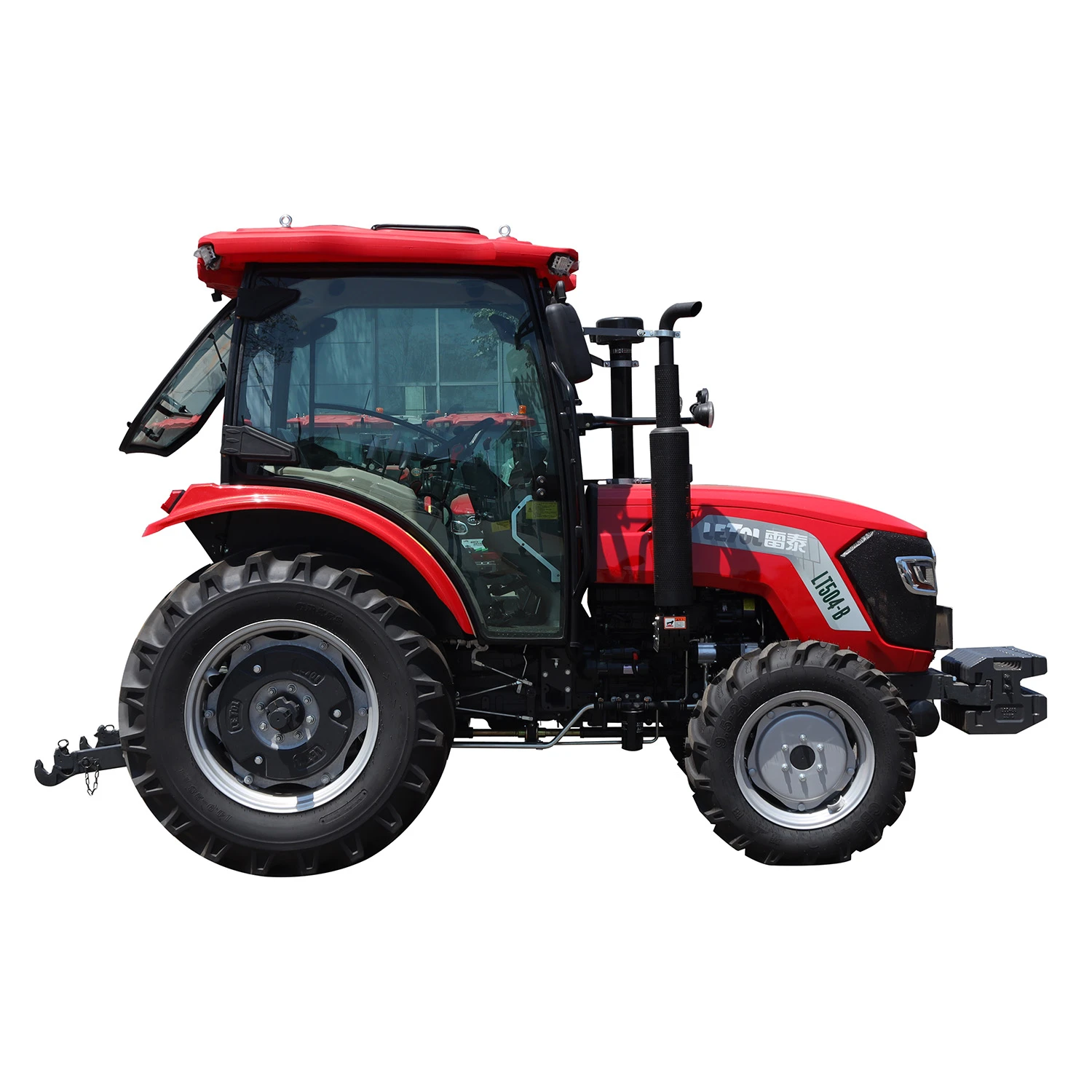

product-1500-1500product-1500-1500

lEquipped with Yunnei engine, it has strong power, is fuel-efficient, and environmentally friendly.

lThe chassis adopts the LT500 chassis independently developed by Jinlite Bridge Box. The shell is thickened and

widened by 50mm, and the weight is increased by 100kg, which has obvious advantages compared to the same

industry. The chassis gears adopt full gear grinding processing technology, with high precision (up to automotive

level) and lower noise. The LT500 chassis industry exclusively adopts 8+8 shuttle type shifting and full meshing

sleeve shifting structure, and the bearings use imported substitute bearings. The gear ratio is scientifically matched,

and the travel speed can reach 40km/h, with a longer service life.

lSelf developed biomimetic streamlined hood with built-in hood lock and self-developed lens headlights for

higher brightness.

lThe tractor cover parts and welded sheet metal parts adopt electrophoretic spraying technology (all welded sheet

metal parts, including elevators, front brackets, bottom plates, etc., use electrophoretic technology), which has

better rust prevention effect and is less prone to rusting.

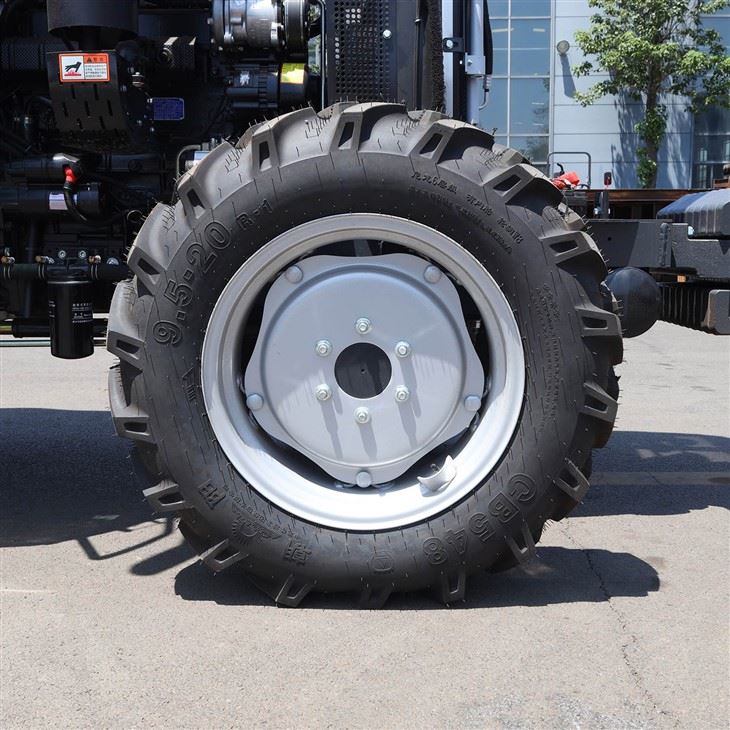

lWater and drought integrated maintenance free front axle, using widened tires for better grip.



1 Engine Engine Xinchai
    Power 45HP-75HP
    Rated speed 2400r/min
    Number of cylinders 4
2 Transmission system

G

earbox



12F+12R
    Main clutch Double-acting clutch
    PTO Mechanical control
    Differential lock

M

achinery



    PTO shaft speed

540/

1000

rpm





No of  PTO

 spline



6
3 Front hood New engine hood Red/Blue
4 Drive system F/R adjustable steering
    Front axle


T

yre



8.3-20/12.4-28
    Rim color Sliver
    Edge valve protection
    Rim color Mechanical control
    Service brakes Mechanical control
5 Hydraulic system Oil joint construction
    Double auxiliary cylinders
    Hydraulic output

2

Group



    Category
6 Counterweight Front
    Rear
7 Electrical system Instrument cluster
    Maintenance-free battery
    LED working lights
    Rotatory warning lights
8 Fuel tank capacity

6

0L



9 Speed Maximum speed

32

KM/H



10 Steering Hydraulic steering
11 Dimension weight

26

00kg



    Dimensions (LxWxH) 4190x1790x2690mm
    Wheel base 2090mm
    Wheel track

12

00mm,1300

mm



    Minimum ground clearance 370mm

product-1920-1556



product-1920-5326product-1920-954



product-1920-3172

product-1920-2893product-1920-2324

product-1920-2867



Hot Tags: 45hp 50hp small diesel tractor agricola mini tractor cultivator 4x4 mini farm tractor, China 45hp 50hp small diesel tractor agricola mini tractor cultivator 4x4 mini farm tractor manufacturers, factory

Item 504D TE TB TD TF TC TS
Power (HP) 25-50 50-70 50-100 100-160 180 200 240-260
Gearbox 8F+8R 8F+8R 12F+12R 16F+8R 16F+8R 24F+8R 16F+16R
Weight (kg) 1500 1800 2600 4800 5280 6380 7800
Length (mm) 3150 3595 4190 5050 5050 5385 5580
Width (mm) 1400 1500 1790 2250 2250 2400 2550
Height (mm) 2170 2330 2690 3050 3050 3200 3200
Wheel base (mm) 1065 1970 2090 2500 2630 2800 2880
Wheel track (mm) 1050 1200 1300 1600 1790 1850 2050
